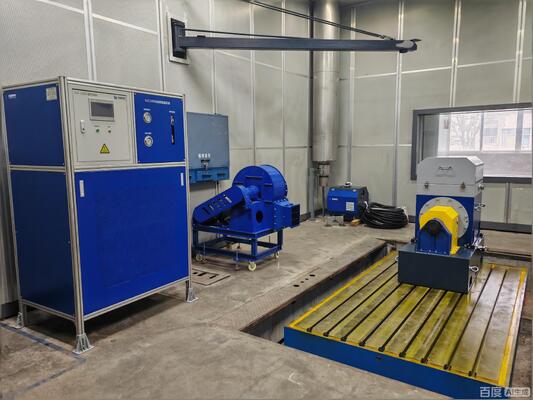

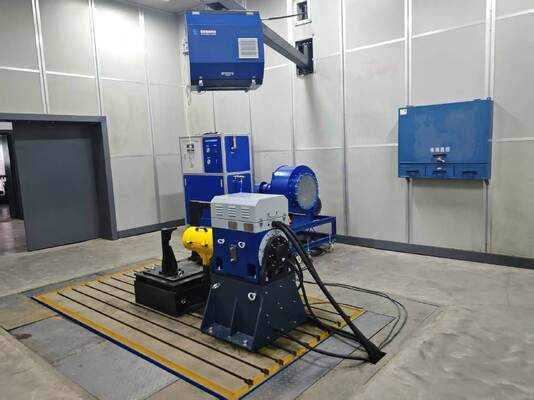

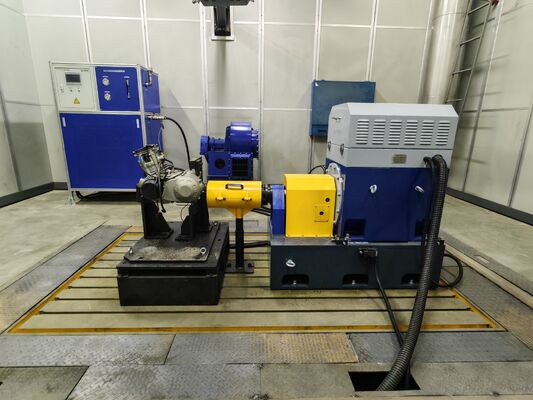

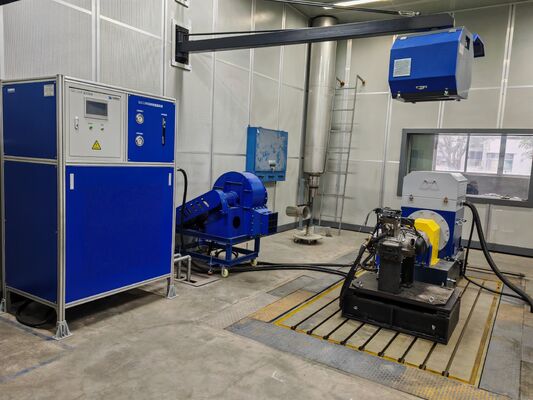

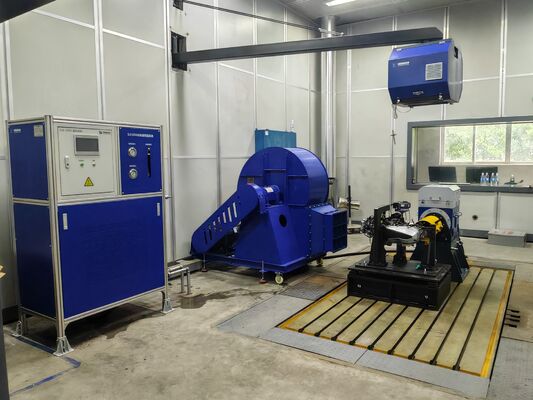

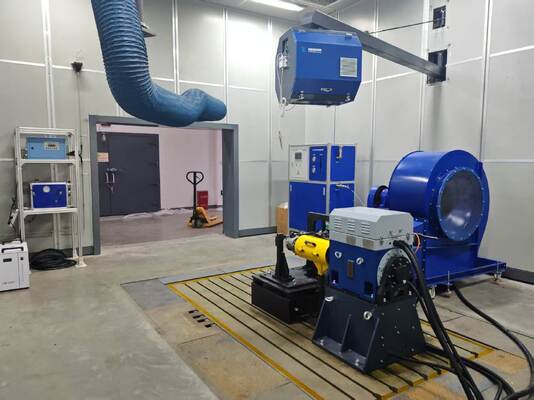

SSCG160-3000/8000 160kW Large Aviation-grade Unmanned Aerial Vehicle Engine Test Dynamometer Bench System

SSCG160-3000/8000 160kW Large Aviation-grade Unmanned Aerial Vehicle Engine Test Dynamometer Bench System

1. SSCG160-3000/8000 160kW Large Aviation-grade Unmanned Aerial Vehicle Engine Test Dynamometer Bench System Component Description

The SSCG160-3000/8000 160kW Large Aviation-grade Unmanned Aerial Vehicle Engine Test Dynamometer Bench System is designed for the development of power for large transport unmanned aerial vehicles, high-altitude long-endurance unmanned aerial vehicles, and light aviation. The system, with its high-rigidity structure and high-power variable frequency feedback technology, can complete performance, durability, high-altitude simulation and reliability verification of high-power turboshaft/turboprop and heavy oil piston engines.

2. SSCG160-3000/8000 160kW Electric Dynamometer Core Technical Parameters

3. SSCG160-3000/8000 160kW Large Aviation-grade Unmanned Aerial Vehicle Engine Test Dynamometer Bench System Core Strengths

1) Professional testing for high power and high torque

160kW class high power absorption capacity, 509Nm large torque range, perfectly matched for large unmanned aerial vehicles and aviation-grade power all-condition testing.

2) Ultra-stable and high-rigidity structure design

Heavy-duty frame + HT300 cast iron platform + multi-stage shock absorption system, significantly reduces high-speed and heavy-load vibration, meets 24-hour continuous durability test.

3) High efficiency energy return and energy saving

Four-quadrant operation, direct grid recovery of generated energy, significantly reduces energy consumption for high-power testing and long-term operating costs.

4) Full-function safety protection system

Multiple levels of protection against overspeed, overload, overheat, overvoltage, phase loss and leakage ensure aviation-grade test safety and reliability.

5) High-end customized expansion capabilities

Support high-end options such as high-altitude environment simulation, heavy fuel supply, vibration monitoring, and emission analysis to meet the demanding requirements of aviation-grade R&D.

4. SSCG160-3000/8000 160kW Large Aviation-grade Unmanned Aerial Vehicle Engine Test Dynamometer Bench System Application Areas

1) Engine testing of large transport unmanned aerial vehicles and high-altitude long-endurance unmanned aerial vehicles

2) Development and validation of 160kW-class turboshaft/turboprop and heavy oil piston engines

3) Performance and durability testing of power systems for light aircraft and general aviation

4) Test of energy systems for high-power hybrid unmanned aerial vehicles

5) Aviation-grade high-speed motor with powertrain calibration

5. SSCG160-3000/8000 160kW Large Aviation-grade Unmanned Aerial Vehicle Engine Test Dynamometer Bench System Reference Standards

· GB/T 13396—2017 Dynamometers for Power Measurement;

· ‌JB/T 11481-2013 Electric Dynamometers;

· JJG 653-2003 Verification Regulation of Dynamometer Systems;

· GB/T 19022—2003 Measurement Management Systems — Requirements for Measurement Processes and Measuring Equipment;

· GB 5226.1—2019 Safety of Machinery — Electrical Equipment of Machines — Part 1: General Requirements;

· GB/T 2423 Environmental Testing of Electric and Electronic Products.

6. UAV Engine Electric Dynamometer Test Bench Model List

Supports customized services: Speed range, torque range, test software functions, and special environment adaptation solutions can be customized according to requirements.

7. Delivery and After-Sales Support

Delivery services

1) Standard models: Ships within 90 days (including pre-testing before delivery to ensure quick installation upon arrival).

2) Customized models: Delivery in 90-120 days, covering international logistics and distribution to major regions worldwide including Europe, America, Southeast Asia, and the Middle East (sea / land transportation options available, including secure packaging and moisture-proof and rust-proof treatment).

3) Supporting services: We provide complete CE and ISO certification documents and certificates of origin, and a dedicated logistics specialist will follow up throughout the process to assist with customs clearance and ensure the safe and timely delivery of large equipment to the site.

After-sales support

1) Warranty commitment: 1-year warranty on core components (dynamometer, torque flange), lifetime maintenance; free troubleshooting and repair services during the warranty period, excluding damage caused by human error.

2) Technical support: 24/7 bilingual (English and Chinese) service, response time ≤ 4 hours

3) Installation, commissioning, and training services: The user is responsible for on-site basic installation. Seelong will dispatch two professional technicians to provide on-site guidance (including equipment positioning and calibration, and pipeline / line connection specifications); equipment commissioning will be handled entirely by us (including power-on testing, parameter calibration, and system linkage testing); 3 days of free professional operation training will be provided (covering equipment operation, parameter settings, daily maintenance, and troubleshooting) to ensure that operators are proficient in using large-scale equipment.
